Chapter 8    The PID Algorithm


Home    Index

Check Your Reading             Study Questions             Thought Questions

The questions will be categorized according to the key concepts in the chapter.

Block Diagrams PID Algorithm

























Check Your Reading

Solidify the Concepts
8.1

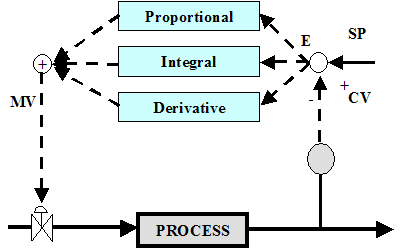

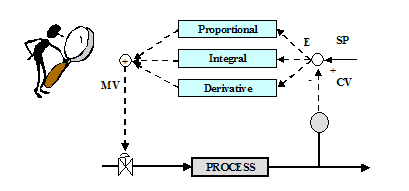

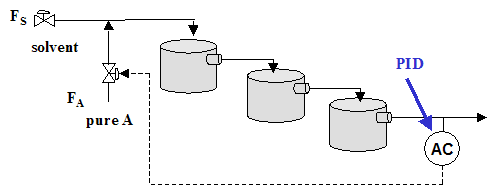

The three modes of the most common feedback controller are called the...








Persistent



Integral



 Proportional



 Derivative


 Interacting



 Disturbance


























8.2
In explaining the PID controller, the term mode means...

PID Algorithm








the highest profit attained with control.



 an adjustable parameter.


 a specific method of considering time-dependent behavior.


has no meaning, only included to confuse students.

























8.3

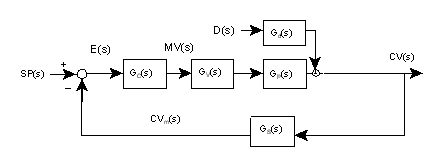

A block diagram is useful for...

Block Diagrams















determining the overall transfer function model of the closed-loop system.



 providing a visual display of the elements in a closed-loop system.


 developing some general properties of closed-loop systems, e.g. determining which elements affect stability.





















8.4
Which element of the closed-loop, feedback system does NOT affect the stability of the closed-loop, linear system?


















Gd(s); disturbance



Gs(s); sensor



 Gc(s); controller



 Gv(s); valve


 Gp(s); process























8.5
The error is calculated as E = SP - CV (not E = CV - SP).  The choice of sign is...








arbitrary.



 to ensure that the value of the error is greater than or equal to zero.


 needed when the set point value is changed.
required for negative feedback.





















8.6
What is the sign of Kc for negative feedback control?






Positive





 Negative


 Same as Kp     (the process S-S gain)
Opposite of Kp  (the process S-S gain)
