Chapter 11 Digital Implementation of Process Control
Check Your Reading Study Questions Thought Questions
The questions will be categorized according to the key concepts in the Chapter.
Sampling | Controller tuning |
Digital Algorithm |
Control system configuration |
|
|
Check Your Reading |
Solidify the Concepts |

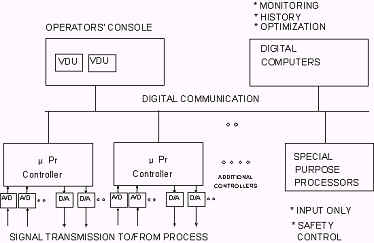

11.1 For ease of communication, plant-wide digital control is implemented in one computer (processor, storage, etc.). |
|
|
11.2 The correct execution period for a digital controller depends upon the feedback process dynamics. |
|
|

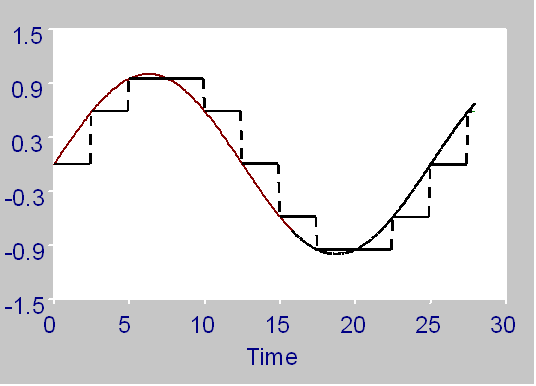

11.3 The zero order hold is used for a sampled value because it provides the best approximation for the continuous signal. |
|
|
11.4 The smallest sampling period for standard sensors (T, P, F, and L) is 1 second. |
|
|
11.5 The longest sample period for process sensors is a few seconds and never greater than one minute. |
|
|

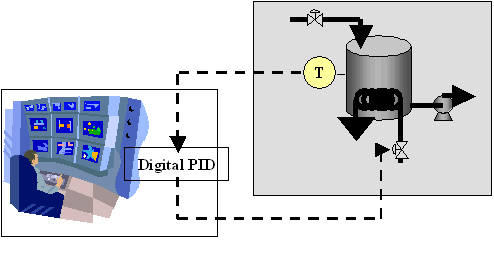

11.6 We implement digital PID controllers to improve the performance over continuous controllers. |
|
|
