Study Questions

Apply Your Knowledge
24.8

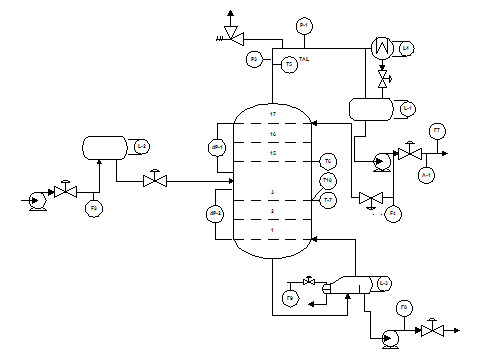

Which of the following is an appropriate safety control design objective?

Control objectives

1. Safety is one of the seven categories of control objectives.




Design materials that do not corrode




 Prevent high pressure in closed vessel (above vessel rating)



 Design vessel walls that are strong enough

Do not allow excessive reflux to return to the tower

























24.9
Which of the following is an appropriate environmental protection control design objective?

Control objectives

2. Environmental protection is one of the seven categories of control objectives.




Do not process hazardous materials



 Do not allow liquid to overflow to the environment from the reflux drum



 Do not release hazardous vapors to the environment

Do not allow leaks from the pumps



























24.10
Which of the following is an appropriate equipment protection control design objective?

Control objectives

3. Equipment protection is one of the seven categories of control objectives.



Do not blow up the tower

 Keep some liquid on each tray

 Keep the steam pressure in the reboiler below the maximum


Provide at least a minimum flow to the pumps by maintaining liquid in the levels





























24.11
Which of the following is an appropriate smooth operation control design objective?

Control objectives

4. Smooth operation is one of the seven categories of control objectives.



Moderate flows from the tower to downstream units


 Do not change the reboiler duty

 Maintain the levels within max/min limits

 Maintain the pressure drop across the stripping section constant





































24.12
Which of the following is an appropriate product quality control design objective?

Control objectives

5. Product quality is one of the seven categories of control objectives.



Maintain the light key in the bottom product at its specification


 Maintain the lighter than light key in the distillate below is maximum

 Control the pressure required for the product quality

 Maintain the heavy key in the distillate product at its specification



































24.13
How can we affect profit when most valves are already used for higher priority objectives?

Control objectives

Profit is important; we have to pay the engineers ($$$$)!

We must have valves that are not used for other objectives.


 We cannot effect profit through process control

 We can adjust the set points of controllers implemented for other objectives


None of the above

























24.14
Which of the following is an appropriate profit control design objective?

Control objectives

6. Profit is one of the seven categories of control objectives.



Maintain the light key in the bottom product at a value that maximizes profit


 Keep the tray temperatures at the highest profit values

 Control the pressure to the value that yields the highest profit

 I still don't believe that control affects profit!





























24.15
Which of the following is an appropriate monitoring and diagnosis control design objective?

Control objectives

7. Monitoring and diagnosis is one of the seven categories of control objectives.

Here, we will focus on short-term monitoring - alarms.



Provide an alarm for every measured variable


 Provide an alarm on the pressure difference across the stripping section.

 Provide a high alarm on the pressure in the tower.

 Provide high and low alarms for the bottoms level

























24.16
Which of the following is an appropriate monitoring and diagnosis control design objective?

Control objectives

7. Monitoring and diagnosis is one of the seven categories of control objectives.

Here, we will focus on longer-term monitoring and process diagnosis.



Provide a trend plot and historical data storage for every variable


 Measure the pressure with two sensors

 Measure several tray temperatures

 Measure the flow rate of the feed, although it is controlled by an upstream unit

























24.17
Which of the following sensor ranges is correct?

Instrumentation

We need to specify the range for every sensor.



Reflux flow: 10-120% of design


 Tray temperature: design=300 ºC, range = 250-350 ºC

 Level: from drain to very top


Pressure: design = 5 atm,

range = 0 to 10 atm.

























24.18
For controlling pressure in the tower, which valve would you manipulate?

Loop Pairing





There is no need to manipulate a valve, the pressure would be essentially constant.


 The distillate flow valve

 The liquid flow from the condenser

 The steam flow to the reboiler.























24.19
If you want to control the bottom product purity, but you do not have an on-stream analyzer, what dominant variable would you select to control?

Loop Pairing

Dominant variable - maintains important unmeasured variables near their desired values.



Use a Fenske-Gilliland model to estimate the bottoms purity.

  Maintain the reboiler duty as constant as possible.
  Control a tray temperature in the lower half of the column
  There is nothing that we can do.  We must install an on-stream analyzer.
